    35 x 22mm Sanpress Inox Insert Reducer S/S 23151

    Manufacturer: Viega
    Be the first to review this product

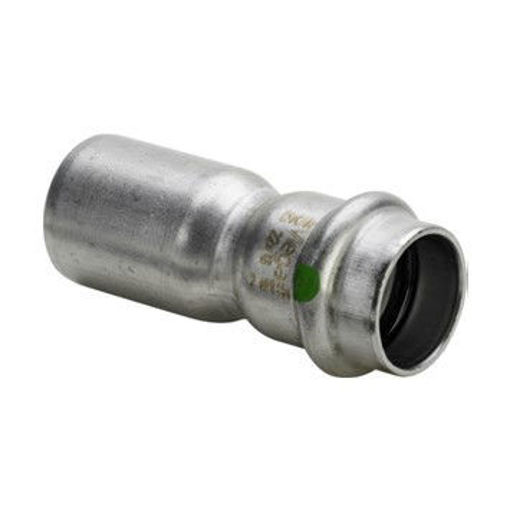

    35 x 22mm Sanpress Inox reducer with SC-Contur non-corroding steel plug-in end, press connection
    SBS SKU: VSANP6035022
    Manufacturer Part Number: 436292
    GTIN / EAN: 4015211436292
    Availability: In stock
    Viega is a V profile system which has a wide application range with SC-Contur (leak-path) feature and includes Megapress, capable of pressing thick walled steel pipe up to 4” NB with the facility to also transport gas (HNBR yellow o-ring).
    MEGAPRESS (STEEL)
    The only thick walled press system available with sizes from 3/4” to 4”, which can be used on seamless, welded, black, galvanised, epoxy-resin coated and industrially painted pipes. Comes with 25 year warranty, will work up to a maximum pressure of 16 bar and can also be used on gas applications.
    TEMPERATURE & PRESSURE
    • BLACK O-RING: -5°C to 110°C
    • YELLOW O-RING: -20°C to 70°C (only up to 2”)
    PRESTABO (CARBON)
    Cost effective system with a size range of 12mm to 108mm. Temperature capacity going from -5°C to 110°C with pressures up to 16 bar and 5 year warranty. SANPRESS INOX (STAINLESS)WRAS approved and gas safe (FKM yellow o-ring) with a 25 year warranty with a size range of 15 to 108mm.
    TEMPERATURE & PRESSURE
    • BLACK O-RING: -5°C to 110°C up to 16 bar
    • YELLOW O-RING: -20°C to 70°C up to 5 bar
    PROFIPRESS (COPPER AND GUNMETAL)
    WRAS approved, gas safe (FKM yellow o-ring) and suitable for solar (FKM matt black o-ring) with a 25 year warranty.
    TEMPERATURE & PRESSURE
    • BLACK O-RING: -5°C to 110°C, up to 16 bar, 12mm to 108mm
    • YELLOW O-RING: -20°C to 70°C, up to 5 bar, 12mm to 64mm
    • MATT BLACK O-RING: 0°C to 140°C, up to 16 bar, 12mm to 35mm

    Products specifications
    Material/Finish Stainless
    Size (mm) 35mm
    Size (mm) 22mm
    Connection Type Press-Fit
    Fitting Type Reducer
