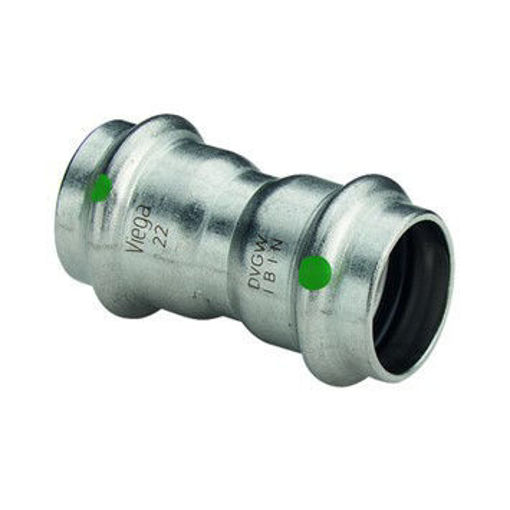

    22mm Sanpress Inox Coupling S/S 2315

    Manufacturer: Viega
    Be the first to review this product
    22mm Sanpress Inox sleeve with SC-Contur non-corroding steel press connections
    SBS SKU: VSANP1022
    Manufacturer Part Number: 436179
    GTIN / EAN: 4015211436179
    Availability: In stock
    Viega is a V profile system which has a wide application range with SC-Contur (leak-path) feature and includes Megapress, capable of pressing thick walled steel pipe up to 4” NB with the facility to also transport gas (HNBR yellow o-ring).
    MEGAPRESS (STEEL)
    The only thick walled press system available with sizes from 3/4” to 4”, which can be used on seamless, welded, black, galvanised, epoxy-resin coated and industrially painted pipes. Comes with 25 year warranty, will work up to a maximum pressure of 16 bar and can also be used on gas applications.
    TEMPERATURE & PRESSURE
    • BLACK O-RING: -5°C to 110°C
    • YELLOW O-RING: -20°C to 70°C (only up to 2”)
    PRESTABO (CARBON)
    Cost effective system with a size range of 12mm to 108mm. Temperature capacity going from -5°C to 110°C with pressures up to 16 bar and 5 year warranty. SANPRESS INOX (STAINLESS)WRAS approved and gas safe (FKM yellow o-ring) with a 25 year warranty with a size range of 15 to 108mm.
    TEMPERATURE & PRESSURE
    • BLACK O-RING: -5°C to 110°C up to 16 bar
    • YELLOW O-RING: -20°C to 70°C up to 5 bar
    PROFIPRESS (COPPER AND GUNMETAL)
    WRAS approved, gas safe (FKM yellow o-ring) and suitable for solar (FKM matt black o-ring) with a 25 year warranty.
    TEMPERATURE & PRESSURE
    • BLACK O-RING: -5°C to 110°C, up to 16 bar, 12mm to 108mm
    • YELLOW O-RING: -20°C to 70°C, up to 5 bar, 12mm to 64mm
    • MATT BLACK O-RING: 0°C to 140°C, up to 16 bar, 12mm to 35mm

    Products specifications
    Material/Finish Stainless
    Size (mm) 22mm
    Connection Type Press-Fit
    Fitting Type Coupling
    0 review(s)
    0.0 0
    Write your own review Close
    *
    *
    • Bad
    • Excellent
    *
    *
    *
    *
    Stock
    Birmingham (B66 1BZ) Out of stock
    Bristol (BS2 0UY) In stock
    Cambridge (CB24 4AE) Out of stock
    Cardiff (CF24 1RF) Out of stock
    Distribution Centre 1 (DC90) Out of stock
    Dundee (DD4 9UB) Out of stock
    Exeter (EX2 7PJ) Out of stock
    Glasgow (G32 8RH) Out of stock
    Heathrow (TW14 0TW) Out of stock
    High Wycombe (HP10 0PE) Out of stock
    Hull (HU7 0XY) Out of stock
    Leeds (LS10 1AX) In stock
    Leicester (LE2 7SR) Out of stock
    Merseyside (CH41 9BA) Out of stock
    Newcastle (NE11 0NJ) Out of stock
    Northampton (NN4 7BX) In stock
    Nottingham (NG6 8UZ) Out of stock
    Oldham (OL1 4AS) Out of stock
    Peterborough (PE1 5UP) Out of stock
    Rainham (RM13 9DD) Out of stock
    Sheffield (S9 5DE) Out of stock
    Southampton (SO53 4SE) Out of stock
