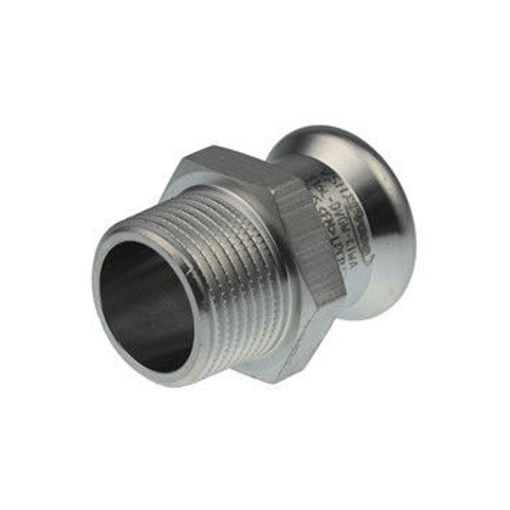

    22x1/2" XPress Stainless MI Conn SS3

    Manufacturer: Pegler Yorkshire
    22mm x 1/2" Press-Fit Xpress Stainless Straight Male Iron Connector, BSP Taper Male Thread SS3
    SBS SKU: SS3022015
    Manufacturer Part Number: 11662
    Availability: In stock

    Xpress is the complete M profile press-fit system from Pegler Yorkshire offering leak before press and various approvals in a diverse range suitable for most installation environments. A brief overview of their range is listed below:

    -

    COPPER
    BSI Kitemark (BS 8537:2010) and WRAS approved system is suitable for solar (Viton green o-ring) and comes with a 25 year warranty. The chrome plated range is also available for visible pipework.
    SIZE:12mm to 108mm (54mm for solar, Viton green o-ring)
    TEMPERATURE & PRESSURE
    BLACK O-RING: -20°C to 110°C up to 16 bar
    GREEN O-RING: -20°C to 200°C up to 10 bar

    -
    CARBON
    Cost effective system with a size range of 15mm to 108mm. Temperature capacity going from -35°C to 135°C with pressures up to 16 bar and 5 year warranty. Plastic coated and internally galvanised tube range available along with 67mm sizes.

    -
    STAINLESS
    A WRAS approved and gas safe (HNBR yellow o-ring) system which can be used for water purification by reverse osmosis and where high levels of hydrogen sulphide are present. The size range is from 15mm to 108mm complete with a 25 year warranty.
    TEMPERATURE & PRESSURE
    BLACK O-RING: -35°C to 135°C up to 16 bar
    YELLOW O-RING: -20°C to 70°C up to 1 bar inside and up to 5 bar outside

    Products specifications
    Material/Finish Stainless
    Fitting Type Connector
    Connection Type Press-Fit
    Size (mm) 22mm
    Size (inch) 1/2
