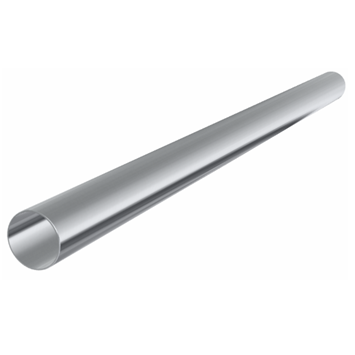

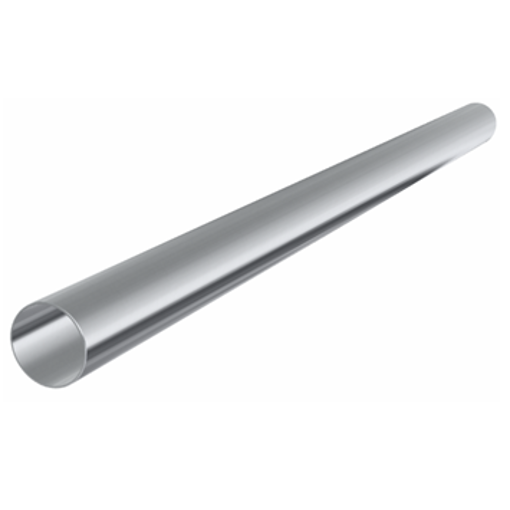

    22mm 316L Stainless Steel Tube-WT 0.7mm (3 Mtr Length)

    Manufacturer: Isotubi
    Be the first to review this product
    22mm x 3 metre length, 316 stainless steel tube with 0.7mm wall thickness, made to EN 10312 & 10217-7. (Priced Per Metre - 1 Length = 3m)
    SBS SKU: ISOT0223M
    Manufacturer Part Number: TNP0220.76LLARGO3
    Availability: In stock

    WELDED TUBES - available in 304 or 316L and both 3 & 6 metre lengths


    The welded stainless steel tube is manufactured in accordance with the EN 10312 and EN 10.217-7 standards. This meets the 1.4404/1.4301 AISI 316L/AISI 304 standard under UNE EN 10088 and the tube also complies with DVGW W541 specifications.























































































    DimensionsO.D. x wall thicknessO.D. x wall thickness
    DN 810 x 110 x 1
    DN 1012 x 112 x 1
    DN 1215 x 115 x 0,6
    DN 1518 x 118 x 0,7
    DN 2022 x 1,222 x 0,7
    DN 2528 x 1,228 x 0,8
    DN 3235 x 1,535 x 1
    DN 4042 x 1,542 x 1,2
    DN 5054 x 1,554 x 1,2
    DN 6576,1 x 276,1 x 1,5
    DN 8088,9 x 288,9 x 2
    DN 100108 x 2108 x 2
    DN 100114,3 x 2114,3 x 2
    DN 125139,7 x 2,6139,7 x 2
    DN 150168,3 x 2,6168,3 x 2

    -


    *304 is for heating only systems

    Products specifications
    Connection Type Press-Fit
    Fitting Type Tube/Pipe
    Material/Finish Stainless
    Size (mm) 22mm
    Length/Coil (metres) 3m
