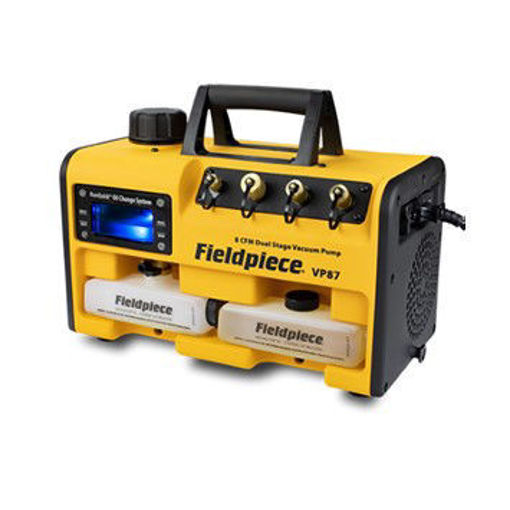

Vacuum Pump - 8CFM 110V A2L

The Fieldpiece VP87 Vacuum Pump shortens evacuation times and saves you time on the jobsite. This lightweight, portable but powerful pump lets you quickly and properly perform system evacuations and its large oil reservoir window gives you a clear view to assess the condition of the oil.

• (1) VP67 Vacuum Pump


• (2) 8 oz. oil


• (1) Appropriate plug based on country


• Certificate of Conformity Included

• Flow Rate: 8CFM


• Oil Capacity: 8oz (237mL)


• Oil Compatibility: Fieldpiece Vacuum Pump Oil (Highly refined and optimized for proper sealing and lubrication)


• Fieldpiece part numbers: OIL8X3, OIL32, OIL128


• Oil Backlight: Blue LED


• Oil Drain: Ball valve


• Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2”


• Compressor: Rotary vane, two stage


• Motor: 3/4 HP Brushless DC


• RPM: 2500


• Power Source: 230 VAC @ 50/60 Hz 1 phase


• Nominal Current Draw: 6.0 AAC


• Ultimate Vacuum at Input Ports: 15 microns


• Dimensions: 7.9 inch x 11.7 inch x 16.0 inch (201 mm x 296 mm x 406 mm)


• Weight: 27 lb / 12.4 kg


• Operating Environment: 30°F to 122°F (-1.1°C to 50°C)
