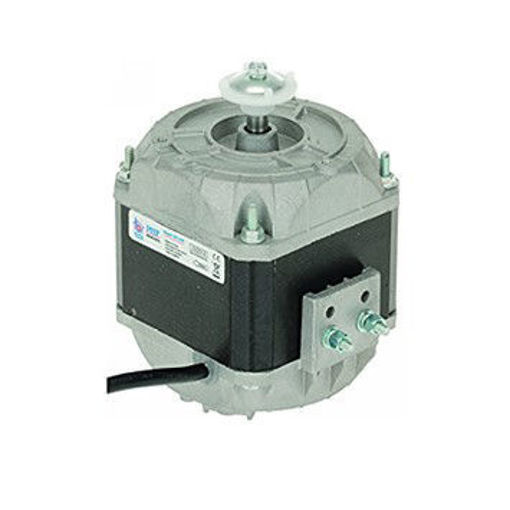

Pump House Fan Motor 16 W Multi Fit

DiversiTech Multi-Fit Sleeve-Bearing Fan Motors

Overview & Purpose

• Universal Multi‑Fit Fan Motors from DiversiTech are compact shaded‑pole motors designed for refrigeration and HVAC systems. They come individually boxed with complete fixings and a 1 m power cord for installation flexibility. These motors are CE‑certified and ROHS‑2 compliant.

Key Specifications

All models operate at 240 V, 50–60 Hz, and spin at 1,300 / 1,500 RPM (depending on load). The available power range includes:

• 5 W (FM‑5W)
• 7 W (FM‑7W)
• 10 W (FM‑10W)
• 16 W (FM‑16W)
• 18 W (FM‑18W)
• 25 W (FM‑25W)
• 34 W (FM‑34W)

Installation & Compatibility

• These motors support a variety of mounting styles thanks to their multi-fit design:Accepts multiple accessory components like fan blades, guard rings, and grids (sold separately) for complete assembly versatility
  • Tapped holes (front or rear)
  • Adjustable bolt-plate for base/top mounts
  • Four corner bolts for ring-mount installations

Technical Construction & Features

• Shaded-pole motor: A simple, cost-effective design—ideal for basic refrigeration applications.
• Insulation & Protection:Energy note: inherently inefficient—useful power makes up only about a third of input, with rest lost as heat and noise—though still cost-effective for many applications
  • Insulation Class: B
  • Ambient operating range: –40 °C to +60 °C
  • Enclosure: IP42 or IP44, suitable for continuous “air-over” operation
