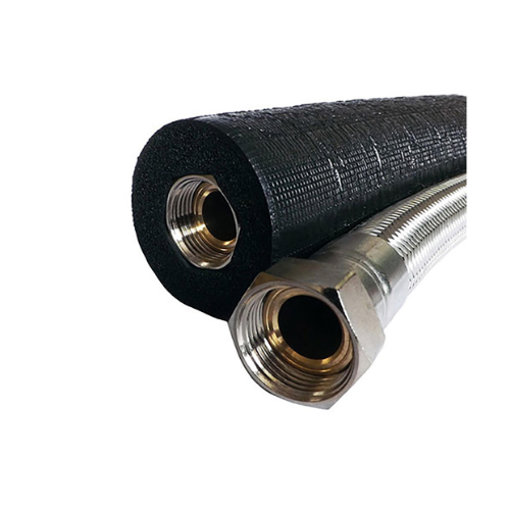

Flexible ASHP Hose Pair - 500mm x 28mm - 1" Female

DiversiTech flexible hose is designed to meet the requirements of the MCS MIS 3005 installation specification to allow the flow and return pipe work to connect to a heat pump. The flexible hose helps to avoid transmission of vibration in the pipe work and allows for a smooth bend when connecting the flow and return pipe to the heat pump or biomass boiler. The 28/35mm hose is sleeved within a stainless steel braid for added protection, available in female or male BSP (British Standard Pipe) thread at one end and 28/35mm compression fitting at the other. All flexible hose comes complete with external grade PVC coated 19mm thick insulation.

FEATURES

• Stainless steel braided hose


• Pre-insulated with 19mm thick PVC coating (25mm - 35mm hose)


• 1” and 1-1/4” male or female BSP thread fitting available


• 28mm compression fitting Suitable for most ASHP & Biomass boilers


• Additional 80mm of insulation to cover the connectors


• Working pressure 10 BAR @ 85°C
