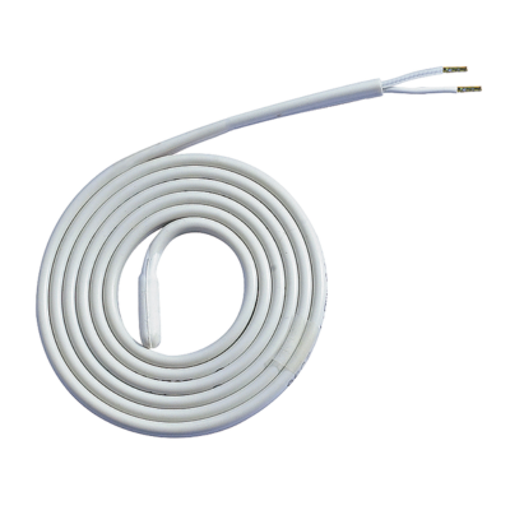

Flexdrain 2JZ/CSC1/2 Thermocable 4.0m 160w

Flexdrain CSC (Thermocable) Range

What Is the Flexdrain CSC Range?

Flexdrain (also branded as FLEXDRAIN by Flexelec) is a series of silicone‑insulated drain‑line heating cables specifically crafted for refrigeration systems. Designed to prevent condensate freeze and ensure reliable drainage during defrost/thaw cycles, these cables are a go-to solution in cold‑room environments.

Key Features & Benefits

• Fully Sealed and Double-Insulated — Ensures durability and safety, even in moist, freeze-prone environments.
• Exceptional Flexibility — Silicone construction enables easy installation inside tight or curved drain pipes.
• 230 V Standard Voltage with Cold Lead — Includes a 1 m power cable (cold tail) for convenient connection and positioning flexibility.
• Power Density Options — Available in typical power ratings of 40 W/m or 50 W/m, with the lower option recommended for plastic pipes to avoid heat damage.
• Wide Operating Temperature Range — Surface temperature tolerances span from approximately –70 °C to +200 °C, ensuring adaptability across environments.
• Ingress Protection — With IP67-rated cables and optional braid or shielding variants (CSC/T, CSC/I, CSC/TS), these cables offer strong moisture and mechanical protection.
• Multiple Variants for Different Needs:Custom Lengths Available — Standard heating lengths range from 1 m up to 6 m, with bespoke options available to suit installation needs.
  • CSC: Basic silicone‑insulated cable
  • CSC/T: Tinned copper braid for earthing and reinforcement
  • CSC/I: Stainless steel braid for optimal protection
  • CSC/TS: Combines braid and silicone insulation for added versatility
• Custom Lengths Available — Standard heating lengths range from 1 m up to 6 m, with bespoke options available to suit installation needs.
