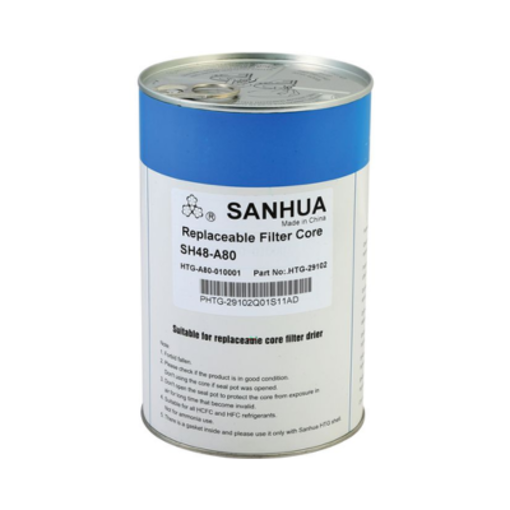

Filter Drier Core A80 (Service)

Sanhua A80 Replacement Core for Filter Driers

Maximum Capacity. Maximum Protection.

The Sanhua A80 Replacement Core is the top-tier solution for high-capacity filtration in large-scale industrial and commercial refrigeration systems. Designed for use in replaceable core filter drier shells, it delivers powerful removal of moisture, acids, and system debris, extending the life and reliability of refrigeration and HVAC components.

Key Features:

• Large-Capacity Core (80 in³) – Ideal for high-tonnage or critical refrigeration systems
• Hybrid Desiccant Blend – Efficient removal of both moisture and acid, even under heavy system loads
• 20 µm Filtration Rating – Traps fine contaminants, including dirt, sludge, and wear particles
• Solid Core Design – Resists vibration and mechanical stress in demanding environments
• Universal Fit – Compatible with standard 80 in³ filter drier shells from Sanhua and other major brands

Performance Specifications:

• Refrigerant Compatibility: HCFCs, HFCs, HFOs, and hydrocarbons (e.g., R134a, R404A, R1234ze, R290)
• Temperature Range: –30 °C to +120 °C
• Max Working Pressure: 48.3 bar (700 psi)
• Moisture and Acid Capacity: Optimized for high refrigerant flow rates and large oil/refrigerant volumes

Installation Benefits:

• Quick Serviceability – Drop-in replacement simplifies routine maintenance
• Sealed for Integrity – Delivered vacuum-packed to preserve desiccant activity
• No Orientation Required – Symmetrical form allows flexible installation in any direction

Certifications:

Fully certified to meet UL, CSA, and PED requirements

Engineered for Large Systems. Built for Long-Term Protection.

Choose Sanhua A80 Replacement Cores when your system demands high-capacity contaminant control and maximum operational uptime — with the confidence of trusted global certification and Sanhua’s proven performance.
