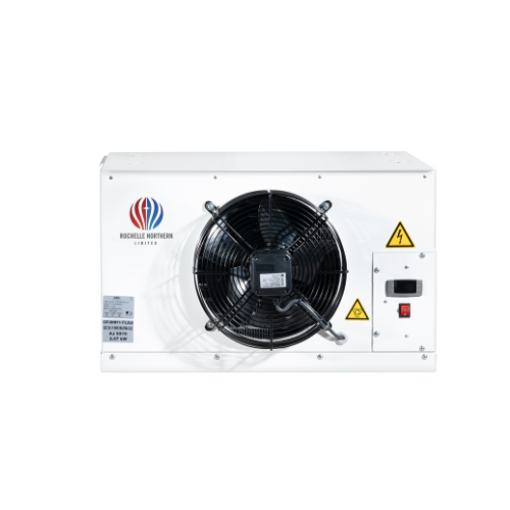

Cellar Cooling Eco Evaporator 5.8kW

Cellar cooling systems are designed to maintain the precise temperatures needed for a wide range of applications, including beer cellars, consumables and other temperature-sensitive storage environments.

At Smith Brothers, our high-performance units provide a reliable, cost-effective refrigeration solution for operations of all sizes. We offer both Eco and Premium ranges, with products to suit a wide ambient operating range from -30°C to 47°C, ensuring dependable performance in demanding conditions. Our systems are designed to deliver accurate temperature control while using R448A or R449A refrigerants, helping customers stay aligned with current legislation.

System Benefits – ECO

• Low/High Ambient Temperature Range
• Low Noise
• Easy Single Phase Installation
• Pre-Fitted Solenoid & Expansion Valve (Pump Down System)
• Non-Critical Charge (fill via Sight Glass)
• Auto LP/HP Switch
• Rotary Compressor

Specification Guidance

• Selection should be made based on the following criteria:
• Rooms to be kept between +4°C to +18°C
• Room walls, ceilings and floors are fully insulated with a thickness of at least 80mm
• Product load 65kg/M³, room holding temperature should not exceed 5k
• Designed operating temperature is 32°C ambient
• Normal air changes
• Refrigerant R448A / R449A

For different conditions, please contact a Smith Brothers representative.
