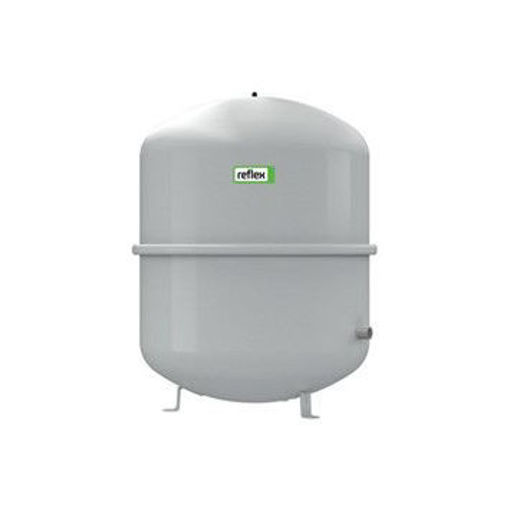

    Altecnic Reflex 50ltr Vessel c/w Legs Htg System

    Manufacturers: Altecnic , Altecnic
    Altecnic Reflex 50 Litre Expansion Heating Vessel comes with Legs - 6 Bar Max Working Pressure
    SBS SKU: ALTHV50C
    Manufacturer Part Number: HV50C
    GTIN / EAN: 4036705109812
    Availability: In stock

    Altecnic offer a complete range of Reflex expansion vessels to meet the requirements of most heating or cooling systems. Expansion vessels for heating systems are manufactured to meet the requirements of PED 97/23/EC Directive and BS EN 13831:2007 Closed expansion vessels with built in diaphragm for installation in water.

    In a closed heating system water cannot be compressed so any increase in volume, created by an increase in temperature, has to be accommodated by an expansion vessel. When water is cold, the pre-charge pressure forces the diaphragm against the tank towards the inlet. As the temperature increases, the expanded water volume pushes against the diaphragm creating additional volume for the water to enter. When the temperature decreases, the pre-charge pressure forces the water from the tank and back into the main heating system. This maintains a constant pressure within the heating system helping to reduce energy consumption.
