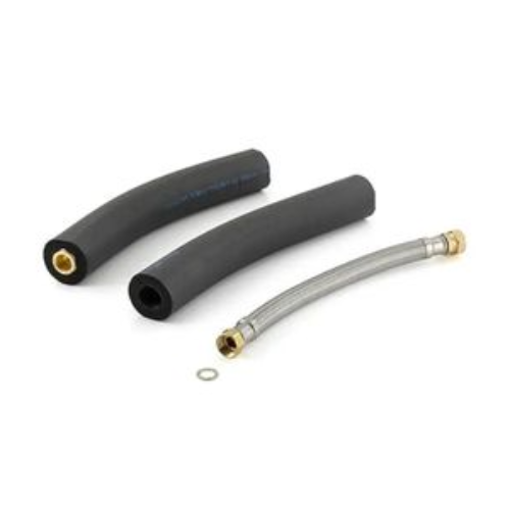

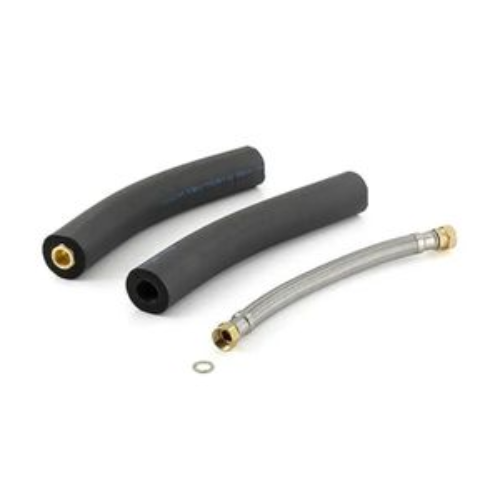

The Altecnic 128-360 hoses are specifically designed for use with heat pumps. The flexible hoses allow for easy connection between the heat pump and associated equipment whilst reducing vibration to the pipework. The hoses are supplied with thick weatherproof insulation to reduce heat losses. The hoses are supplied in pairs.
Construction Details
The hoses have a swivel connection on the heat pump end and a compression joint to connect to the pipework inside or outside of the building. Threaded connections to BS EN ISO 228-1 Compression ends complying with BS EN 1252-2 for use with R250 (half hard) copper tube.
Technical Specification
Nominal Size: DN25
Max. pressure: 10 bar
Max. temperature: 90˚C
Threaded ends: BS EN ISO 228-1
Compression ends: BS EN 1252-2
Materials
Flexible hose: Stainless steel
Crimped sleeve: Stainless steel
End connections: Stainless steel
Nut and olive: Brass
Liner: EPDM
Insulation
Aeroflex HF
Inside diameter: 35
Outside diameter: 73
Thickness: 19
Temperature range: -50 ˚C to 125 ˚C
Thermal conductivity EN ISO 8497 λ 40˚C ≤ 0.040 W/(m·K)
Reaction to fire: BS EN 13501 Class 1 Water vapour diffusion resistance: EN 1 3469 μ ≥ 3000
UV resistance: UV Resistant
