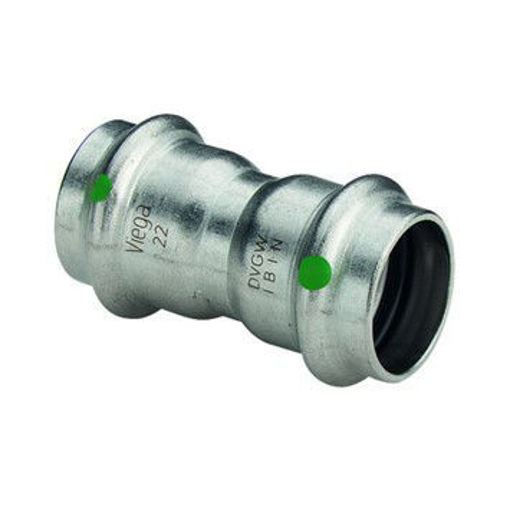

54mm Sanpress Inox Coupling S/S 2315

Manufacturer: Viega

Be the first to review this product

54mm Sanpress Inox sleeve with SC-Contur non-corroding steel press connections

SBS SKU: VSANP1054

Manufacturer Part Number: 436216

GTIN / EAN: 4015211436216

Availability: In stock

Overview
Downloads
Specifications
Reviews
Contact Us
Stock Location

Viega is a V profile system which has a wide application range with SC-Contur (leak-path) feature and includes Megapress, capable of pressing thick walled steel pipe up to 4” NB with the facility to also transport gas (HNBR yellow o-ring).

MEGAPRESS (STEEL)
The only thick walled press system available with sizes from 3/4” to 4”, which can be used on seamless, welded, black, galvanised, epoxy-resin coated and industrially painted pipes. Comes with 25 year warranty, will work up to a maximum pressure of 16 bar and can also be used on gas applications.

TEMPERATURE & PRESSURE

BLACK O-RING: -5°C to 110°C
YELLOW O-RING: -20°C to 70°C (only up to 2”)

PRESTABO (CARBON)

Cost effective system with a size range of 12mm to 108mm. Temperature capacity going from -5°C to 110°C with pressures up to 16 bar and 5 year warranty. SANPRESS INOX (STAINLESS)WRAS approved and gas safe (FKM yellow o-ring) with a 25 year warranty with a size range of 15 to 108mm.

TEMPERATURE & PRESSURE

BLACK O-RING: -5°C to 110°C up to 16 bar
YELLOW O-RING: -20°C to 70°C up to 5 bar

PROFIPRESS (COPPER AND GUNMETAL)

WRAS approved, gas safe (FKM yellow o-ring) and suitable for solar (FKM matt black o-ring) with a 25 year warranty.

TEMPERATURE & PRESSURE

BLACK O-RING: -5°C to 110°C, up to 16 bar, 12mm to 108mm
YELLOW O-RING: -20°C to 70°C, up to 5 bar, 12mm to 64mm
MATT BLACK O-RING: 0°C to 140°C, up to 16 bar, 12mm to 35mm

Products specifications

Material/Finish	Stainless
Size (mm)	54mm
Connection Type	Press-Fit
Fitting Type	Coupling
