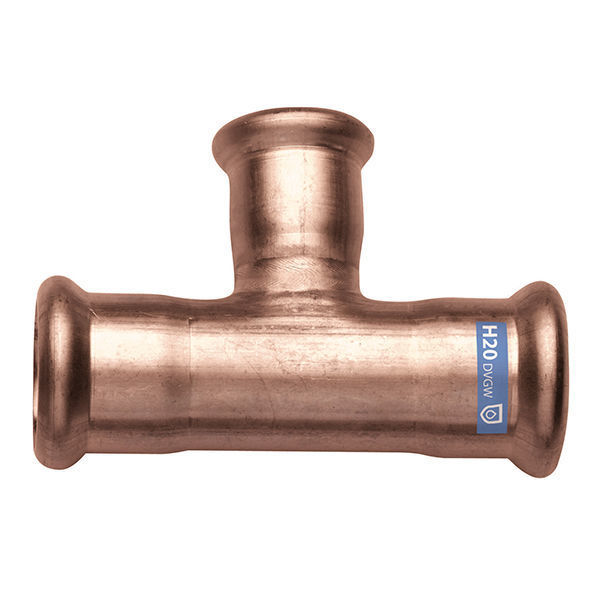

    54 x 28 Copper Press Reducing Tee 9131 WRAS

    Manufacturer: Frabo
    Copper WRAS Approved M profile system with temperature range of -10°C to 110°C and pressure up to 16 bars. Securfrabo (patented leak detection on un-pressed joints) on sizes up to 54mm, XL sizes available from 66.7mm to 108mm.
    SBS SKU: PCU25054028
    Manufacturer Part Number: ZM9131054028054
    Availability: In stock

    15 - 54mm

    The WRAS approved system has the Securfrabo security system with a size range of 15mm to 54mm. The M-profile copper and bronze press fittings have a black EPDM gasket which has high chemical-physical performance. The material of the gasket complies with EN 681-1 standard. Mixed connection fittings to other systems are made using bronze threaded parts with press ends, the threads comply with UNI EN 10226-1 standard.

    66.7 - 108mm (XL SIZES)

    The WRAS approved press fitting system with a size range of between 66.7mm to 108 mm. Fittings are made of carbon steel (material nr. 1.0034) and are electrolytically zinc plated. The zinc plating applied to EN 10305 pipes and fittings guarantees higher corrosion resistance, ensuring reliability over time. The sealing gasket is high-quality EPDM and the threads comply with UNI EN 10226-1 standard.

    Products specifications
    Connection Type Press-Fit
    Fitting Type Tee
    Material/Finish Copper
    Size (mm) 28mm
    Size (mm) 54mm
    0.0 0
    Write your own review Close
    *
    *
    • Bad
    • Excellent
    *
    *
    *
    *
    Stock
    Birmingham (B66 1BZ) In stock
    Bristol (BS2 0UY) In stock
    Cambridge (CB24 4AE) In stock
    Cardiff (CF24 1RF) In stock
    Distribution Centre 1 (DC90) Out of stock
    Dundee (DD4 9UB) In stock
    Exeter (EX2 7PJ) In stock
    Glasgow (G32 8RH) In stock
    Heathrow (TW14 0TW) In stock
    High Wycombe (HP10 0PE) In stock
    Hull (HU7 0XY) In stock
    Leeds (LS10 1AX) In stock
    Leicester (LE2 7SR) In stock
    Merseyside (CH41 9BA) In stock
    Newcastle (NE11 0NJ) In stock
    Northampton (NN4 7BX) In stock
    Nottingham (NG6 8UZ) In stock
    Oldham (OL1 4AS) In stock
    Peterborough (PE1 5UP) Out of stock
    Rainham (RM13 9DD) In stock
    Sheffield (S9 5DE) In stock
    Southampton (SO53 4SE) In stock
