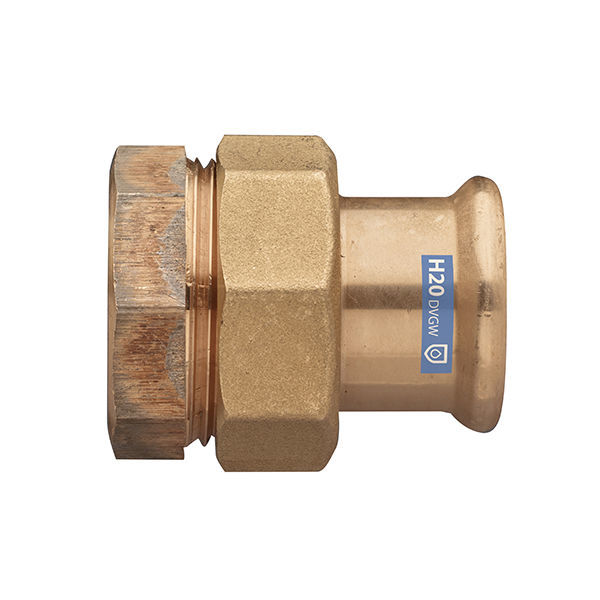

54 x 2" Copper Press Female Union Adaptor 8347 WRAS

Manufacturer: Frabo
Copper WRAS Approved M profile system with temperature range of -10°C to 110°C and pressure up to 16 bars. Securfrabo (patented leak detection on un-pressed joints) on sizes up to 54mm, XL sizes available from 66.7mm to 108mm.
SBS SKU: PCU69F054
Manufacturer Part Number: ZM8345C02054000
Availability: In stock

15 - 54mm

The WRAS approved system has the Securfrabo security system with a size range of 15mm to 54mm. The M-profile copper and bronze press fittings have a black EPDM gasket which has high chemical-physical performance. The material of the gasket complies with EN 681-1 standard. Mixed connection fittings to other systems are made using bronze threaded parts with press ends, the threads comply with UNI EN 10226-1 standard.

66.7 - 108mm (XL SIZES)

The WRAS approved press fitting system with a size range of between 66.7mm to 108 mm. Fittings are made of carbon steel (material nr. 1.0034) and are electrolytically zinc plated. The zinc plating applied to EN 10305 pipes and fittings guarantees higher corrosion resistance, ensuring reliability over time. The sealing gasket is high-quality EPDM and the threads comply with UNI EN 10226-1 standard.
