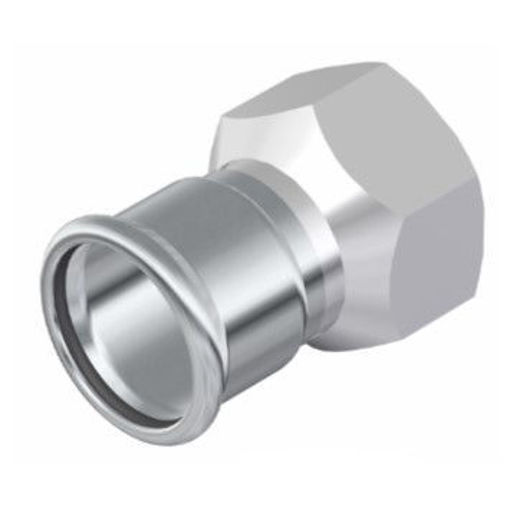

42mm x 11/2" 316L Stainless *GAS* Press F/I BSP Adaptor 17

SYSTEM TECHNICAL SPECIFICATIONS

Joint type: O-ring resistant to hot water, ageing and the additives commonly used in drinking water. There are different type of O-rings depending on its application.

Fitting material: Stainless steel nº 1.4404 (AISI 316L).

Characteristics;

• Hygienic, as demonstrated in many food and pharmaceutical industry applications.
• Minimum load loss, resulting in faster fluid flows.
• Excellent decorative finish avoiding need for additional painting or external protection costs.
• Less heat conduction than other materials.
• The use of molybdenum results in good performance in chlorinated environments.
• Good resistance to oxidation and good mechanical and deformation resistance at high temperatures.
• Environmentally friendly.

Joint type: Cold joint ideal for joining thinwall stainless steel pipes.

Working pressure: Max 16 bar

Working temperature:

• EPDM O-ring (black) –20 ºC to +110 ºC
• FKM O-ring (green) –20 ºC to +200 ºC
• FKM O-ring (red) –10ºC to +200 ºC
• HNBR O-ring (yellow) –20ºC to +70 ºC

Wall-thickness of the fitting:

• 1.5 mm for diameters; 15, 18, 22, 28, 35, 42, 54
• 2 mm for diameters; 76.1, 88.9, 108, 114.3, 139.7, 168.3
• 2.6 mm for diameters; 139.7, 168.3

-

*304 material is not suitable for drinking water applications
