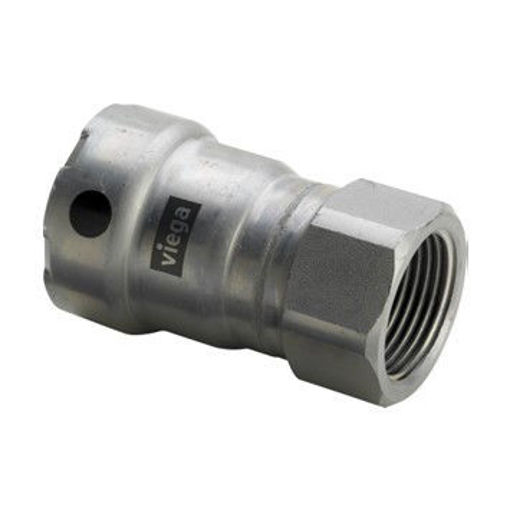

32nbx11/4" Megapress Female Adaptor

Manufacturer: Viega
32nbx11/ Megapress adapter with SC-Contur non-alloyed steel, zinc-nickel coating press connection, Rp-thread
SBS SKU: V4212032
Manufacturer Part Number: 695361
GTIN / EAN: 4015211695361
Availability: In stock
Viega is a V profile system which has a wide application range with SC-Contur (leak-path) feature and includes Megapress, capable of pressing thick walled steel pipe up to 4” NB with the facility to also transport gas (HNBR yellow o-ring).
MEGAPRESS (STEEL)
The only thick walled press system available with sizes from 3/4” to 4”, which can be used on seamless, welded, black, galvanised, epoxy-resin coated and industrially painted pipes. Comes with 25 year warranty, will work up to a maximum pressure of 16 bar and can also be used on gas applications.
TEMPERATURE & PRESSURE
  • BLACK O-RING: -5°C to 110°C
  • YELLOW O-RING: -20°C to 70°C (only up to 2”)
PRESTABO (CARBON)
Cost effective system with a size range of 12mm to 108mm. Temperature capacity going from -5°C to 110°C with pressures up to 16 bar and 5 year warranty. SANPRESS INOX (STAINLESS)WRAS approved and gas safe (FKM yellow o-ring) with a 25 year warranty with a size range of 15 to 108mm.
TEMPERATURE & PRESSURE
  • BLACK O-RING: -5°C to 110°C up to 16 bar
  • YELLOW O-RING: -20°C to 70°C up to 5 bar
PROFIPRESS (COPPER AND GUNMETAL)
WRAS approved, gas safe (FKM yellow o-ring) and suitable for solar (FKM matt black o-ring) with a 25 year warranty.
TEMPERATURE & PRESSURE
  • BLACK O-RING: -5°C to 110°C, up to 16 bar, 12mm to 108mm
  • YELLOW O-RING: -20°C to 70°C, up to 5 bar, 12mm to 64mm
  • MATT BLACK O-RING: 0°C to 140°C, up to 16 bar, 12mm to 35mm
