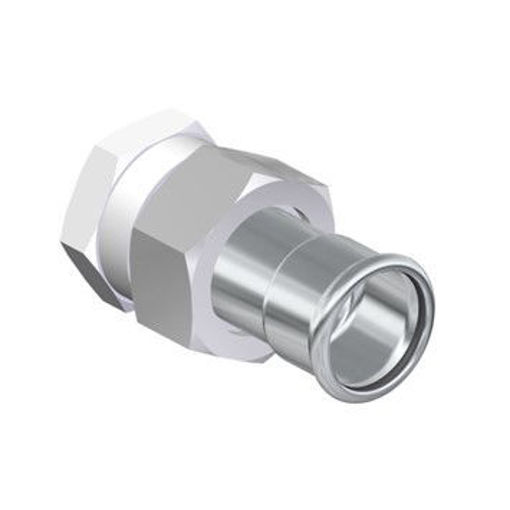

28x1" 316L Stainless Press Female Union 42

Manufacturer: Isotubi
316L stainless steel WRAS approved M-Profile press fitting, maximum 16 bar working pressure. For temperature range and fitting wall thickness see detailed description below.
SBS SKU: ISO69F028
Manufacturer Part Number: F422816
GTIN / EAN: 8436021109118
Availability: In stock

SYSTEM TECHNICAL SPECIFICATIONS


Joint type: O-ring resistant to hot water, ageing and the additives commonly used in drinking water. There are different type of O-rings depending on its application.


Fitting material: Stainless steel nº 1.4404 (AISI 316L).


Characteristics;



  • Hygienic, as demonstrated in many food and pharmaceutical industry applications.

  • Minimum load loss, resulting in faster fluid flows.

  • Excellent decorative finish avoiding need for additional painting or external protection costs.

  • Less heat conduction than other materials.

  • The use of molybdenum results in good performance in chlorinated environments.

  • Good resistance to oxidation and good mechanical and deformation resistance at high temperatures.

  • Environmentally friendly.


Joint type: Cold joint ideal for joining thinwall stainless steel pipes.


Working pressure: Max 16 bar


Working temperature:



  • EPDM O-ring (black) –20 ºC to +110 ºC

  • FKM O-ring (green) –20 ºC to +200 ºC

  • FKM O-ring (red) –10ºC to +200 ºC

  • HNBR O-ring (yellow) –20ºC to +70 ºC


Wall-thickness of the fitting:



  • 1.5 mm for diameters; 15, 18, 22, 28, 35, 42, 54

  • 2 mm for diameters; 76.1, 88.9, 108, 114.3, 139.7, 168.3

  • 2.6 mm for diameters; 139.7, 168.3


-


*304 material is not suitable for drinking water applications
