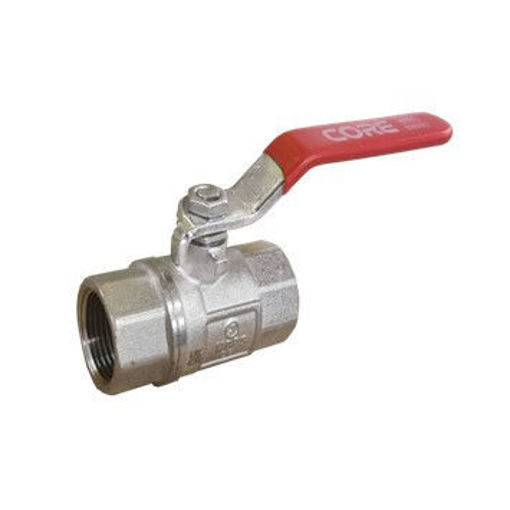

    20nb CORE750 Ball Valve Red Lever WRAS

    Manufacturer: CORE
    Be the first to review this product
    20nb (3/4") 2 Piece Brass Ball Valve Screwed BSP Parallel F/F Ends (ISO 228/1). Full bore, Anti-blow-out stem. Max Pressure 40 Bar (Liquids), 5 Bar (Gas). Working temperature -20°C to +140°C (Liquids), -20°C to +60°C (Gas). WRAS approved. EN331 approved (GAS).
    SBS SKU: CORE750R020
    Availability: In Stock

    CORE valves not only offer excellent performance, they are a high quality cost competitive alternative against other branded products.

    Ball

    All the ball valves within the CORE range are WRAS approved (CORE750 and CORE800 are also EN331-approved). Alternative lever colours and, in some instances, additional handle options, such as extended lever handles are available. Screwed, compression, and M&V* press ended options are available, in brass and DZR brass.

    *Note: Press ended ball valves are M & V universal profile in sizes 15mm to 35mm, 42mm and 54mm are M profile only.



    Products specifications
    Size (inch) 3/4
    Valve Type Ball
    Material/Finish Brass
    Connection Type Threaded/Screwed
