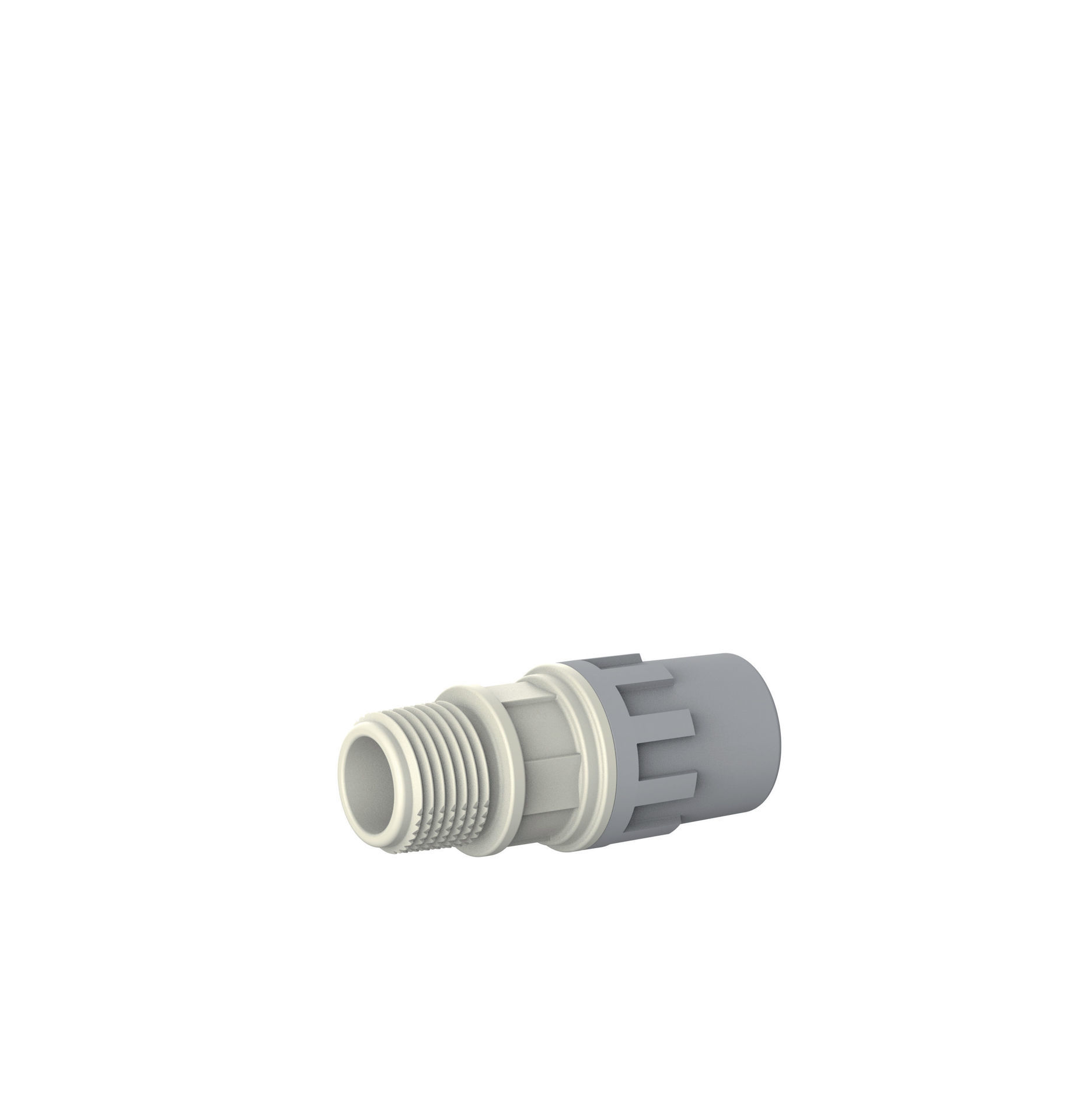

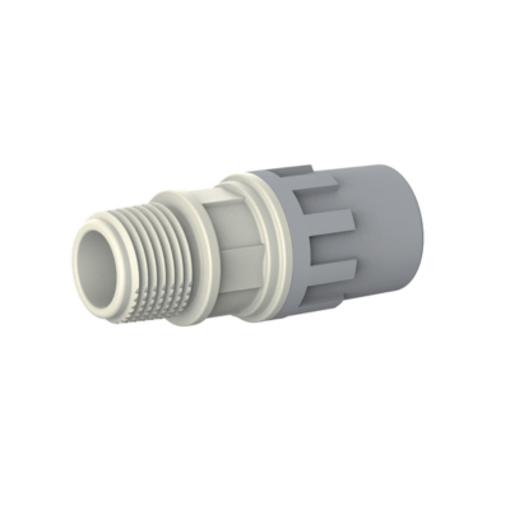

20mm x 3/4" MBSP Aqua Adaptor 20010

The Safety Pol system by Aquatechnik has a unique flared jointing system, which provides a simple, yet secure, installation method for multi-layer pipes. The Lloyds registered product with high insurance backed warranties gives the user total peace of mind when installing. The fully WRAS approved system utilises an easy to use tool, which expands the end of the pipe in order to accept the fitting. This method unlike other systems, does not reduce the bore of the pipe/fitting keeping flow rates at their optimum. This often means lower sizes are needed compared to other technologies. The fittings are fully demountable and adjustable, allowing installation flexibility whilst maintaining joint integrity. The safety system is made up of Pe-X/Aluminium/Pe-X pipe and PPSU fittings, which together form a complete solution, providing high thermo-mechanical resistance and long term material stability and reliability.

-

SIZE RANGE: 12 to 75mm

CONNECTION SYSTEM: Flared Mechanical Jointing System

TEMPERATURE RANGE: Up to 95°C

PRESSURE RANGE: Up to 10 bar

FINISH: White

LENGTHS: Coiled (without memory) & Straight Lengths

-

ADVANTAGES

• Secure, demountable, adjustable and re-useable fitting system
• High resistance against impacts
• Higher flow rates & lower pressure drop against other MLCP systems
• Fast, clean & simple installation process
• Modular & comprehensive fitting system allowing total flexibility
• Resistant to the possibility of corrosion & scaling
• Resistant to lime, cement, plaster, phenomena of electro-chemical aggression
• Suitable for potable, heating and chilled water applications
• Also compatible with a wide range of fluid types, making it suitable for use in many industrial applications including compressed air installations with low oil content
• Low costs & low cost tooling
