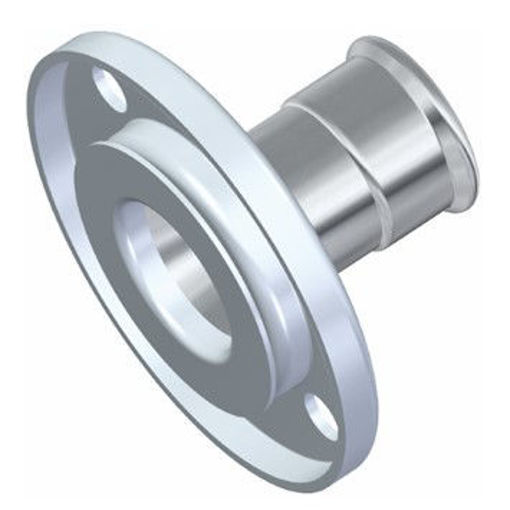

    168mm 316L Stainless Press Flange Adaptor PN16 28 *GAS*

    Manufacturer: Isotubi
    GAS 316L stainless steel M-Profile press fitting, maximum 16 bar working pressure. For temperature range and fitting wall thickness see detailed description below. *Image might not display correct O-ring colour.
    SBS SKU: ISOGVAPF168
    Manufacturer Part Number: GASF281686
    Availability: In stock

    SYSTEM TECHNICAL SPECIFICATIONS

    Joint type: O-ring resistant to hot water, ageing and the additives commonly used in drinking water. There are different type of O-rings depending on its application.

    Fitting material: Stainless steel nº 1.4404 (AISI 316L).

    Characteristics;

    • Hygienic, as demonstrated in many food and pharmaceutical industry applications.
    • Minimum load loss, resulting in faster fluid flows.
    • Excellent decorative finish avoiding need for additional painting or external protection costs.
    • Less heat conduction than other materials.
    • The use of molybdenum results in good performance in chlorinated environments.
    • Good resistance to oxidation and good mechanical and deformation resistance at high temperatures.
    • Environmentally friendly.

    Joint type: Cold joint ideal for joining thinwall stainless steel pipes.

    Working pressure: Max 16 bar

    Working temperature:

    • EPDM O-ring (black) –20 ºC to +110 ºC
    • FKM O-ring (green) –20 ºC to +200 ºC
    • FKM O-ring (red) –10ºC to +200 ºC
    • HNBR O-ring (yellow) –20ºC to +70 ºC

    Wall-thickness of the fitting:

    • 1.5 mm for diameters; 15, 18, 22, 28, 35, 42, 54
    • 2 mm for diameters; 76.1, 88.9, 108, 114.3, 139.7, 168.3
    • 2.6 mm for diameters; 139.7, 168.3

    -

    *304 material is not suitable for drinking water applications

    Products specifications
    Connection Type Press-Fit
    Fitting Type Adaptor
    Material/Finish Stainless
    Size (mm) 108mm+
