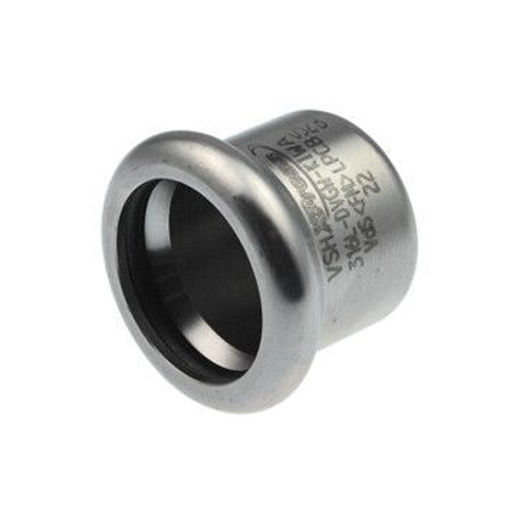

    15mm Xpress Stainless Stop End SS61

    Manufacturer: Pegler Yorkshire
    15mm Xpress Press-FitStainless Steel Stop End For Use On Stainless Steel Tube SS61
    SBS SKU: SS61015
    Manufacturer Part Number: 11701
    Availability: In stock

    Xpress is the complete M profile press-fit system from Pegler Yorkshire offering leak before press and various approvals in a diverse range suitable for most installation environments. A brief overview of their range is listed below:


    BSI Kitemark (BS 8537:2010) and WRAS approved system is suitable for solar (Viton green o-ring) and comes with a 25 year warranty. The chrome plated range is also available for visible pipework.
    SIZE:12mm to 108mm (54mm for solar, Viton green o-ring)
    BLACK O-RING: -20°C to 110°C up to 16 bar
    GREEN O-RING: -20°C to 200°C up to 10 bar

    Cost effective system with a size range of 15mm to 108mm. Temperature capacity going from -35°C to 135°C with pressures up to 16 bar and 5 year warranty. Plastic coated and internally galvanised tube range available along with 67mm sizes.

    A WRAS approved and gas safe (HNBR yellow o-ring) system which can be used for water purification by reverse osmosis and where high levels of hydrogen sulphide are present. The size range is from 15mm to 108mm complete with a 25 year warranty.
    BLACK O-RING: -35°C to 135°C up to 16 bar
    YELLOW O-RING: -20°C to 70°C up to 1 bar inside and up to 5 bar outside

    Products specifications
    Fitting TypeStop End/Plug/Cap
    Size (mm)15mm
    Connection TypePress-Fit
