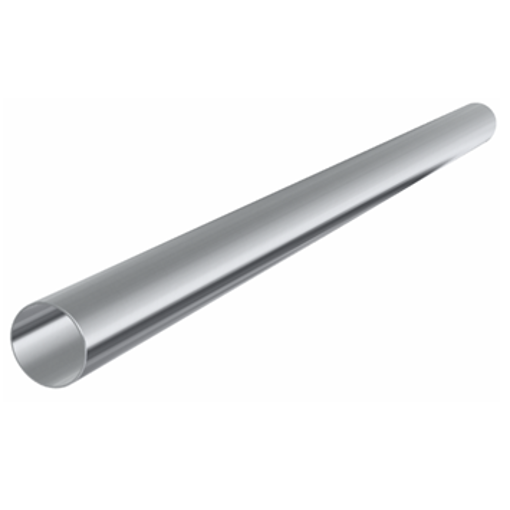

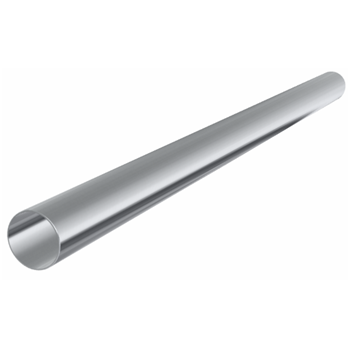

15mm 304 Stainless Steel Tube-WT 0.6mm

Manufacturer: Isotubi
15mm x 6 metre length, 304 stainless steel tube with 0.6mm wall thickness, made to EN 10312 & 10217-7 (Heating Only). (Priced Per Metre - 1 Length = 6m)
SBS SKU: ISO304T015
Manufacturer Part Number: TNP0150.64LARGO6
Availability: In stock

WELDED TUBES - available in 304 or 316L and both 3 & 6 metre lengths


The welded stainless steel tube is manufactured in accordance with the EN 10312 and EN 10.217-7 standards. This meets the 1.4404/1.4301 AISI 316L/AISI 304 standard under UNE EN 10088 and the tube also complies with DVGW W541 specifications.























































































DimensionsO.D. x wall thicknessO.D. x wall thickness
DN 810 x 110 x 1
DN 1012 x 112 x 1
DN 1215 x 115 x 0,6
DN 1518 x 118 x 0,7
DN 2022 x 1,222 x 0,7
DN 2528 x 1,228 x 0,8
DN 3235 x 1,535 x 1
DN 4042 x 1,542 x 1,2
DN 5054 x 1,554 x 1,2
DN 6576,1 x 276,1 x 1,5
DN 8088,9 x 288,9 x 2
DN 100108 x 2108 x 2
DN 100114,3 x 2114,3 x 2
DN 125139,7 x 2,6139,7 x 2
DN 150168,3 x 2,6168,3 x 2

-


*304 is for heating only systems
