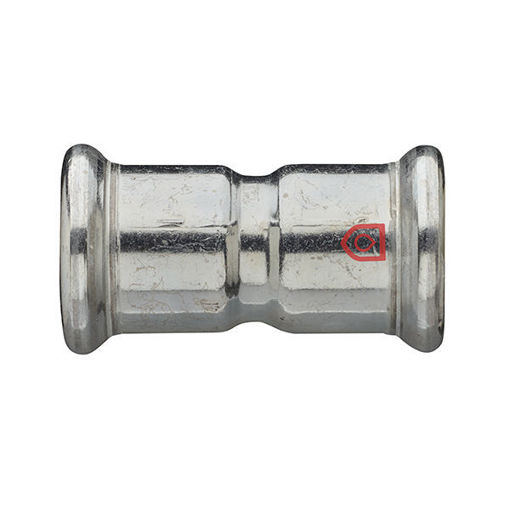

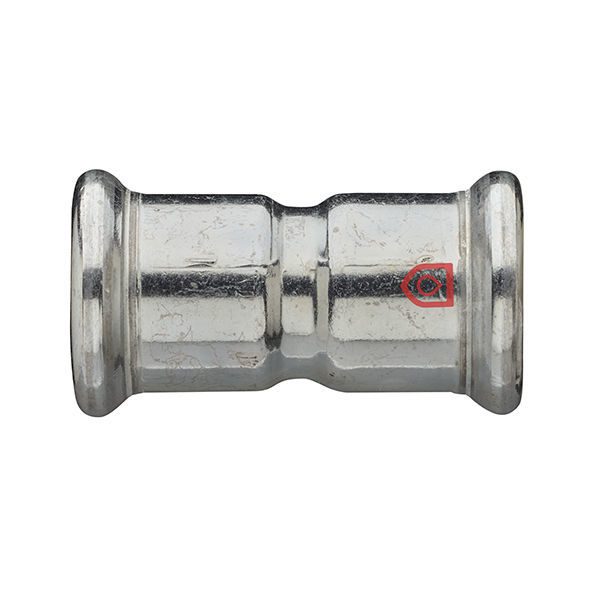

    15mm Carbon Press Coupling

    Manufacturer: Frabo
    Carbon steel M profile system with temperature range of -10°C to 110°C and pressure up to 16 bars. Securfrabo (patented leak detection on un-pressed joints) on sizes up to 54mm, XL sizes available from 66.7mm to 108mm. *Not suitable for drinking water.
    SKU: PCA1015

    15 - 54mm

    System has the Securfrabo security system with a size range of 15mm to 54mm. The M-profile press fittings are made of carbon steel (material nr. 1.0034) and are electrolytically zinc plated. The zinc plating applied to the pipes and fittings guarantees higher corrosion resistance, ensuring reliability over time.

    The threads comply with UNI EN 10226-1 standard and the EPDM sealing gasket is equipped with Securfrabo system for detecting leaks from fittings which are not pressed.

    66.7 - 108mm XL SIZES

    The press fitting system with a size range of between 66.7mm to 108 mm. Fittings are made of carbon steel (material nr. 1.0034) and are electrolytically zinc plated. The zinc plating applied to EN 10305 pipes and fittings guarantees higher corrosion resistance, ensuring reliability over time. The sealing gasket is high-quality EPDM and the threads comply with UNI EN 10226-1 standard.

    -

    *Not suitable for drinking water

    Products specifications
    Connection TypePress-Fit
    Fitting TypeCoupling
    Material/FinishCarbon
    Size (mm)15mm
    *
    *
    *
